Reject Note Destruction System (RDS-100)

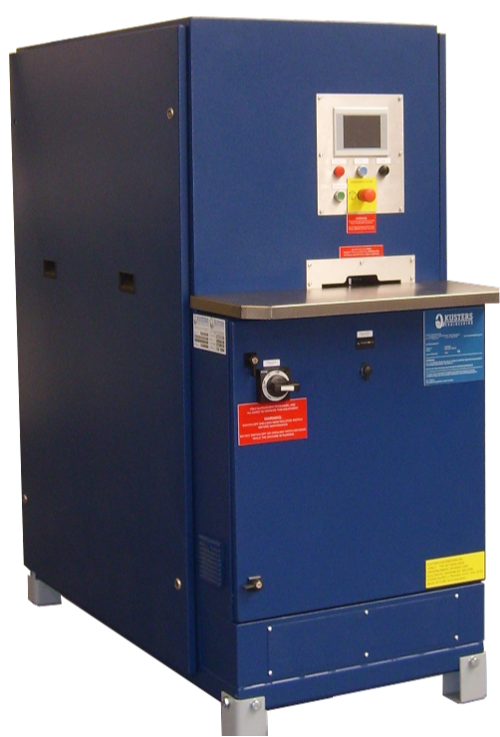

RDS-100 2 - no background-1-1
The RDS-100 provides a comprehensive solution for securely and efficiently destroying unfit banknotes. Designed for use in central bank currency processing centers, this compact machine can be deployed in both large facilities and smaller, remote branches. With its integration into existing shred extraction systems and security features, the RDS-100 ensures that rejected notes are invalidated and destroyed without the need for further handling or storage.

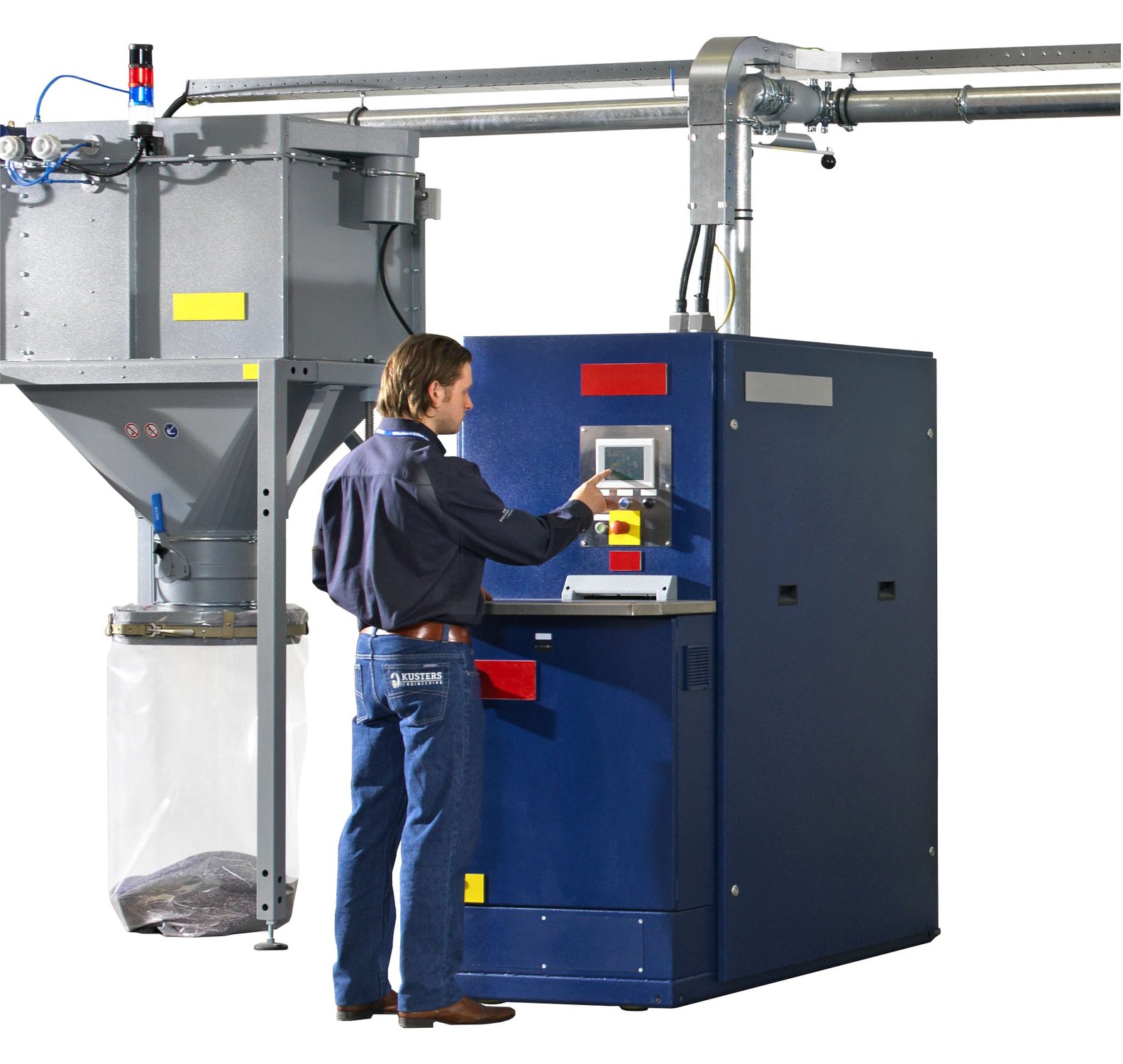

RDS-100 with shred collection - white background

Key features of the Reject Note Destruction System (RDS-100)



  • Efficient processing: Destroys 80-120 kg of banknotes per hour, ideal for large and small-scale use.
  • Secure and enclosed: Fully lockable system ensures safe destruction of banknotes.
  • Easy integration: Connects seamlessly to existing shred and briquetting systems.
  • Manual operation: Handles bundles of up to 100 notes, perfect for small branches.
  • Enhanced security: Reduces manual handling, with end-of-day destruction under security supervision.
  • Controlled access: Personal log-in ensures only authorized use.
  • Compact design: Can be dismantled for installation in tight spaces (900 x 2000 mm doorways).
Download leaflet Download leaflet

Technical specifications of the RDS-100



  • Destruction capacity: 80-120 kg/h (material dependent)
  • Granule size: Max. 6 x 6 mm
  • Dimensions: 1.5 x 0.9 x 1.5 m (LxWxH)
  • Weight (Empty): Approx. 1,100 kg
  • Noise level: Max. 70-80 dB(A) at 1-meter distance
  • Power requirements: 400 V, 50 Hz, 32 Amp (slow blow fuse), 4-5 kW (full load)
  • Recommended room size: 2.5 x 2 x 2 m (LxWxH)
  • Shred handling: On-line briquetting system or shred collection unit
  • Operator attendance: Limited to manual feeding only
  • Security: Acoustic alarms on all doors, controlled access through personal login codes

Why choose the RDS-100



  • Increased Security: The RDS-100 eliminates the need for excessive handling of banknotes by integrating destruction directly into your currency processing workflow, significantly reducing the risk of theft or loss.
  • Boost Efficiency: Banks can balance accounts and destroy rejected banknotes at the end of each day, improving overall operational efficiency.
  • Ideal for Small and Remote Branches: The system is perfect for smaller branches with limited destruction needs, such as those located on islands, allowing them to securely manage rejected banknotes without having to transport them to larger facilities.

Capacity up to 120 kg per hour
